- Place of Origin:CN;ZHE
- Max. Lifting Height:3000mm
- Brand Name:HUAHE
- Condition:New
- Overall Dimensions:2680x1225x2120mm
- Fork Length:1070mm
- Certification:CE/ISO9001
- Power Souce:Diesel Engine
- Min. Lifting Height:2120mm
- Type:Powered Pallet Truck
- Fork Width:125mm
- Rated Loading Capacity:3000KG

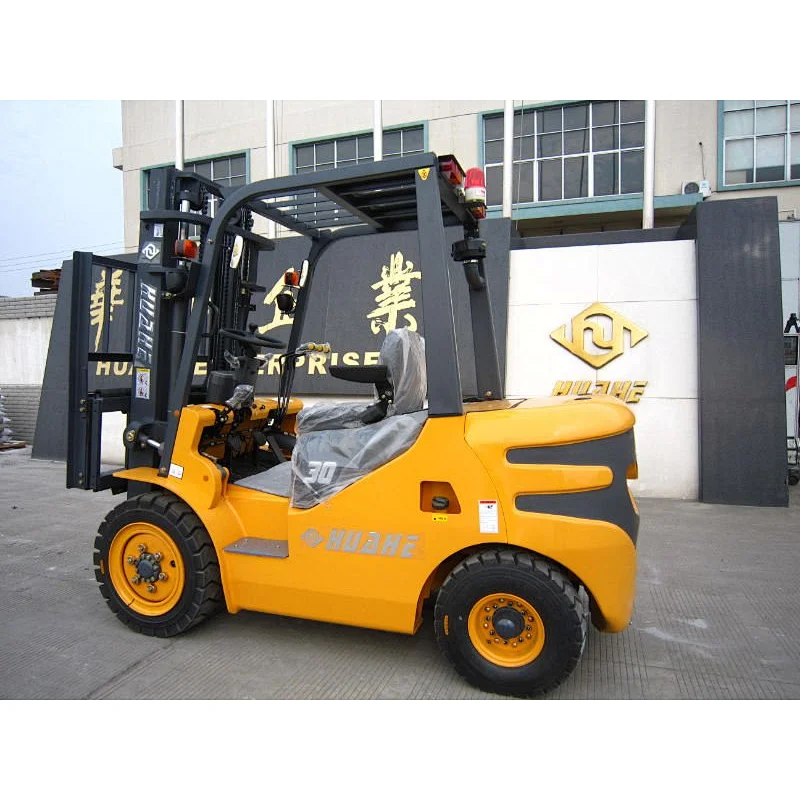

- Model Number:HH30Z-W3-D
- Color:Yellow
- Tires:Pneumatic
- Engine:YANMAR 4TNE92
- Weight:4400KGS
Structure Characteristics: Powerful, Economical and Comfortable
l Seat: Seat could be adjusted back and forth. The loading capacity of the seat can be automatically according to body weight, thereby to make operation comofortable. Safety belt is equipped to ensure driver’s safety.
l Fork buffer system: When the forks are landing to touch ground, it will speed down to reduce impact and noice.
Generals | Model | Unit | HH30 | HH30Z | |
Power type |
| Diesel | |||
Rated capacity | Kg | 3000 | |||
Load center | mm | 500 | |||
Dimensions | Lift height | mm | 3000 | ||
Free lift height | mm | 130 | |||
Fork size (L×W×T) | mm | 1070×125×45 | |||
Mast inclination F/R | Deg | 6°/12° | |||
Front overhang | mm | 490 | |||
Overall Dimensions | Length to face of fork | mm | 2680 | ||
Overall width | mm | 1225 | |||
Mast lowered height | mm | 2095 | |||
Overhead guard height | mm | 2120 | |||
Turning radius | mm | 2460 | |||
Min. right angle aisle width | mm | 2105 | |||
Performance | Travel speed | Unload I/II | Km/h | 9/20 | |
Full load I/II | Km/h | 8.8/18.5 | |||
Lift speed | mm/s | 480 | |||
Max. grade ability | % | 20 | |||
Max. drawbar pull | Kn | 13 | |||
Self weight | Kg | 4400 | |||
Wheels & Tires | Tires | Front |
| 28×9-15-12PR | |
Rear |
| 6.50-10-10PR | |||
Tread | Front Q | mm | 1000 | ||
Rear S | mm | 970 | |||
Wheelbase | mm | 1700 | |||
Min. ground clearance (unload/full load) | Mast | mm | 152/132 | ||
Frame | mm | 158/138 | |||
Drive units & Control | Battery | V/Ah | 12/90 | ||
Engine | Model |
| 4TNE92 490BPG | ||
Rated output | Kw/rpm | 33/2450 37/2650 | |||
Rated torque | N.m/rpm | 150/1700 145/1800 | |||
Displacement | cc | 2659 2400 | |||
Transmission | Type |
| Hydraulic | ||
Shift Fwd/Rwd |
| 1/1 Power shift | |||
Operating pressure | Mpa | 17.5 | |||
Total Dimension: 2680mm*1225mm*2120mm
Weight: 4400kgs
Quantity: 3pcs/20'GP 6pcs/40'HQ
