- Applicable Industries:Construction works
- Condition:New
- Place of Origin:CN;ZHE
- Type:Powered Pallet Truck
- Power Souce:Diesel Engine
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- Brand Name:HUAHE
- Max. Lifting Height:6000mm
- Min. Lifting Height:3000mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2680x1225x2120mm
- Certification:CE
- Color:White
- Weight:4400KGS

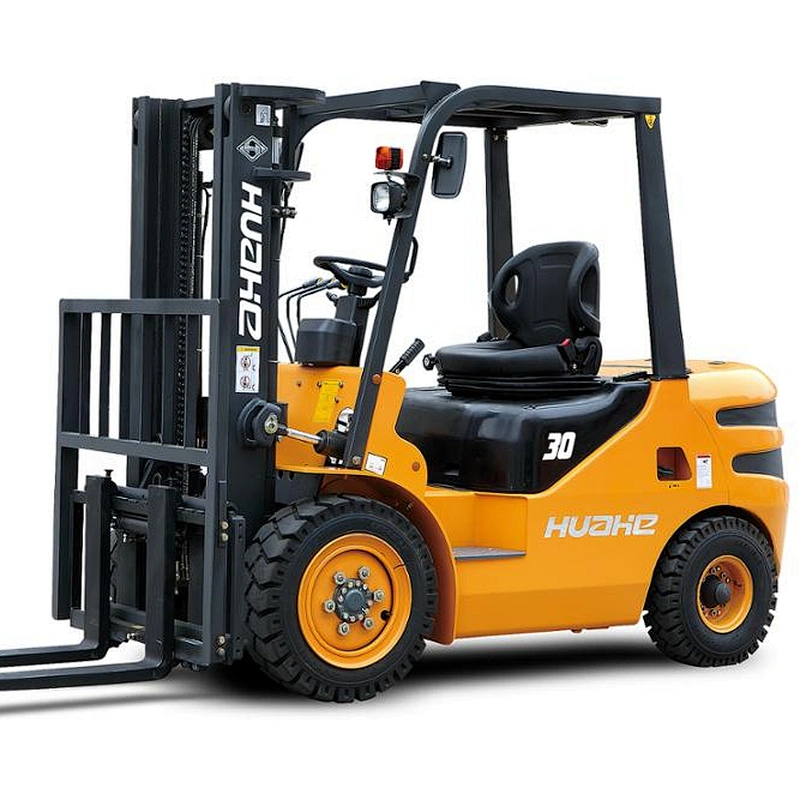

3T Diesel Forklift Truck With Japanese ISUZU Engine
Generals | Model | Unit | HH30 | HH30Z | |
Power type |
| Diesel | |||
Rated capacity | Kg | 3000 | |||
Load center | mm | 500 | |||
Dimensions | Lift height | mm | 3000 | ||
Free lift height | mm | 130 | |||
Fork size (L×W×T) | mm | 1070×125×45 | |||
Mast inclination F/R | Deg | 6°/12° | |||
Front overhang | mm | 490 | |||
Overall Dimensions | Length to face of fork | mm | 2680 | ||
Overall width | mm | 1225 | |||
Mast lowered height | mm | 2095 | |||
Overhead guard height | mm | 2120 | |||
Turning radius | mm | 2460 | |||
Min. right angle aisle width | mm | 2105 | |||
Performance | Travel speed | Unload I/II | Km/h | 9/20 | |
Full load I/II | Km/h | 8.8/18.5 | |||
Lift speed | mm/s | 480 | |||
Max. grade ability | % | 20 | |||
Max. drawbar pull | Kn | 13 | |||
Self weight | Kg | 4400 | |||
Wheels & Tires | Tires | Front |
| 28×9-15-12PR | |
Rear |
| 6.50-10-10PR | |||
Tread | Front Q | mm | 1000 | ||
Rear S | mm | 970 | |||
Wheelbase | mm | 1700 | |||
Min. ground clearance (unload/full load) | Mast | mm | 152/132 | ||
Frame | mm | 158/138 | |||
Drive units & Control | Battery | V/Ah | 12/90 | ||
Engine | Model |
| C240 | ||
Rated output | Kw/rpm | 34.5/2500 | |||
Rated torque | N.m/rpm | 139/1800 | |||
Displacement | cc | 2369 | |||
Transmission | Type |
| Hydraulic | ||
Shift Fwd/Rwd |
| 1/1 Power shift | |||
Operating pressure | Mpa | 17.5 | |||
·Selling point of the product
1. Suspension vehicle body
2. Operation-friendliness
3. Smart damping of door frame
4. Hydraulic electronic gear shifting
5. Advanced damping seat
6. Perfect curvy shape.
Colour Could Be White, Yellow, Green, Blue and so on
Choose Our Forklift You Can Get Some Free Spare Parts For Your Daily Mainteance
Dimension: 2680mm*1225mm*2120mm
Get more packing detail, contact me
