- Place of Origin:CN;ZHE
- Max. Lifting Height:6M
- Brand Name:HUAHE
- Condition:New
- Overall Dimensions:2680x1225x2120mm
- Fork Length:1070mm
- Certification:CE
- Power Souce:LP Gas Engine
- Min. Lifting Height:3M
- Fork Width:122mm
- Rated Loading Capacity:3000KG
- Model Number:HH30Z-K5-L
- Type:Forklift
- Color:Yellow/Blue/Orange/White
- Engine:NISSAN
- Lift height:3-6M
- Mast:2 stage/2 stage full free/3 stage full free
- Tires:Pneumatic standard/Solid
- Front tyres:Single/Double
- Air filter:Single/Double
- Exhaust:Standard/Upper-positioner
- Weight:4400KGS
3t new diesel forklift trucks for sale,japanese nissan capacity truck
Specification
origin | ZHEJIANG HuaHe forklift company | |||||||||
Model |
| HH30Z | ||||||||
Power type |
| Gasoline/LPG | ||||||||
Rated capacity | kg | 3000 | ||||||||
Load center | mm | 500 | ||||||||
Dimension | Lift height | mm | 3000 | |||||||
Free lift height | mm | 130 | ||||||||
Fork size | N*U*L | mm | 1070*125*45 | |||||||
Mast inclination | Front/Back | deg | 6/12 | |||||||
Front o-verhang | mm | 490 | ||||||||
Overall dimensions | Length to face of fork | mm | 2680 | |||||||
Overall width | mm | 1225 | ||||||||
Mast lowered height | mm | 2095 | ||||||||
Overhead guard height | mm | 2120 | ||||||||
Turning radius | mm | 2460 | ||||||||
Min. right angle aisle width | mm | 2105 | ||||||||
Performance | Travel speed | No load | km/h | 9/20 | ||||||
Full load | mm/s | 8.8/18.5 | ||||||||
Lift speed | mm/s | 480 | ||||||||
Max. gradeability | % | 20 | ||||||||
Max. drawbar pull | Kn | 14 | ||||||||
self weight | kg | 4400 | ||||||||
Wheel&Tires | Tires | Front |
| 28*9-15-12PR | ||||||
Rear |
| 6.50-10-10PR | ||||||||
Tread | Front | mm | 1000 | |||||||
Rear | mm | 970 | ||||||||
Wheelbase | mm | 1650 | ||||||||
Min. ground (no ldad/full load) | Mast | mm | 152/132 | |||||||
Frame | mm | 158/138 | ||||||||
Drive units | Battery | Voltage | V/Ah | 12/90 | ||||||
Engine | Model |
| K25 | |||||||
origin |
| Japan | ||||||||
Rated output/r.p.m | kw/r.p.m | 44/2500 | ||||||||
Rated torque | N.m/r.p.m | 186/1600 | ||||||||
No.Cylinder |
| 2472 | ||||||||
Displacement | cc | 4 | ||||||||
Type |
| Hydraulic | ||||||||
Shift | (Fwd/Rwd) |
| 1/1 | |||||||
Operating pressure | Mpa | 17.5 | ||||||||
Selling Point
·Genuine Nissan Engine Ensure A Quality
·Gasoline And LPG Forklifts. Available In Either: Gasoline; LPG ; Duel Fuel, Gasoline And LPG Suitable For Indoor And Outdoor Uses In Warehouse And Distribution Centers.

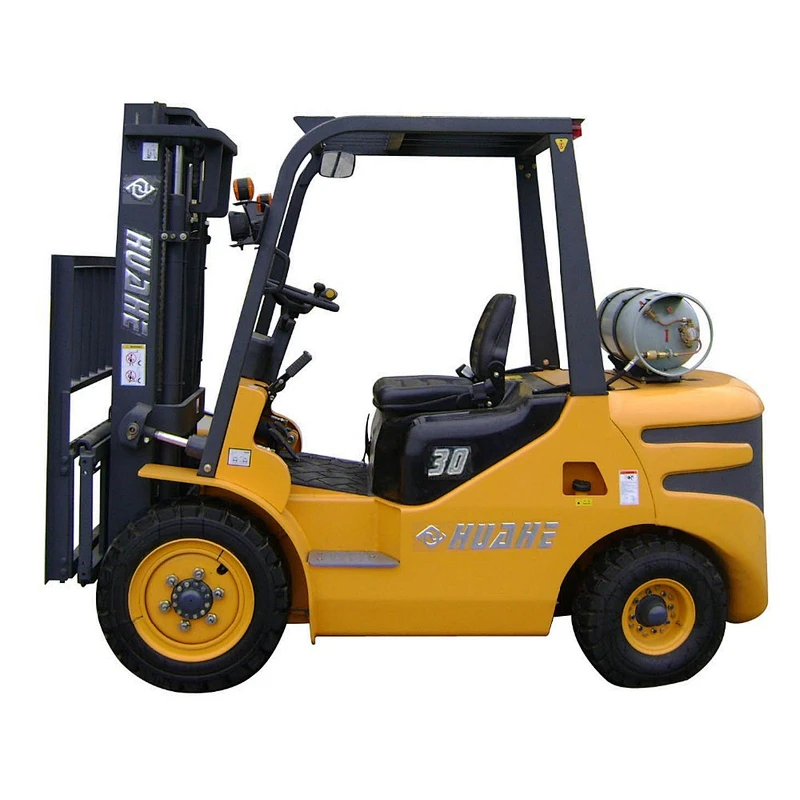

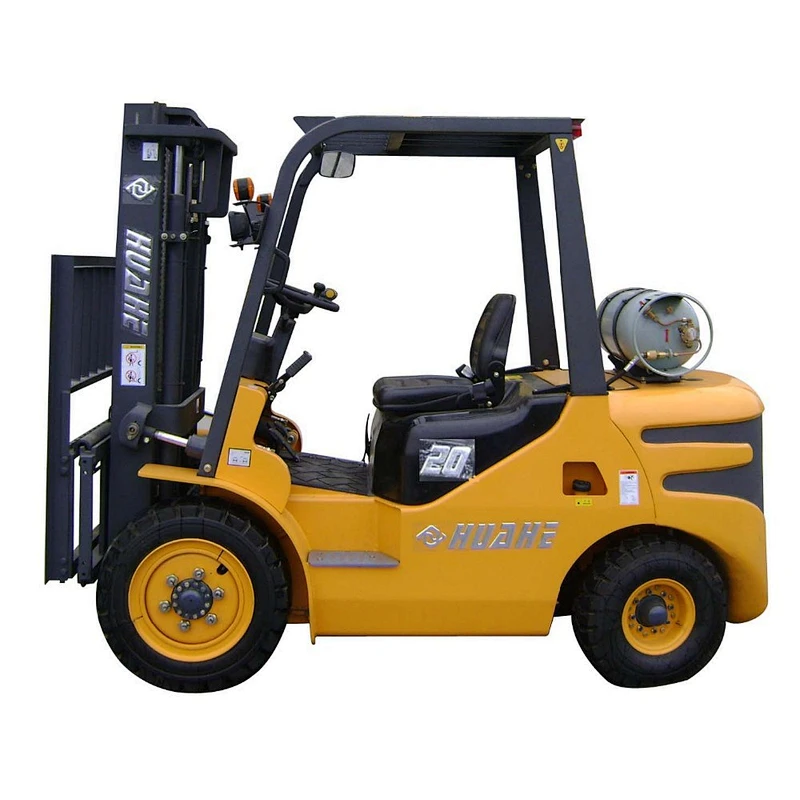

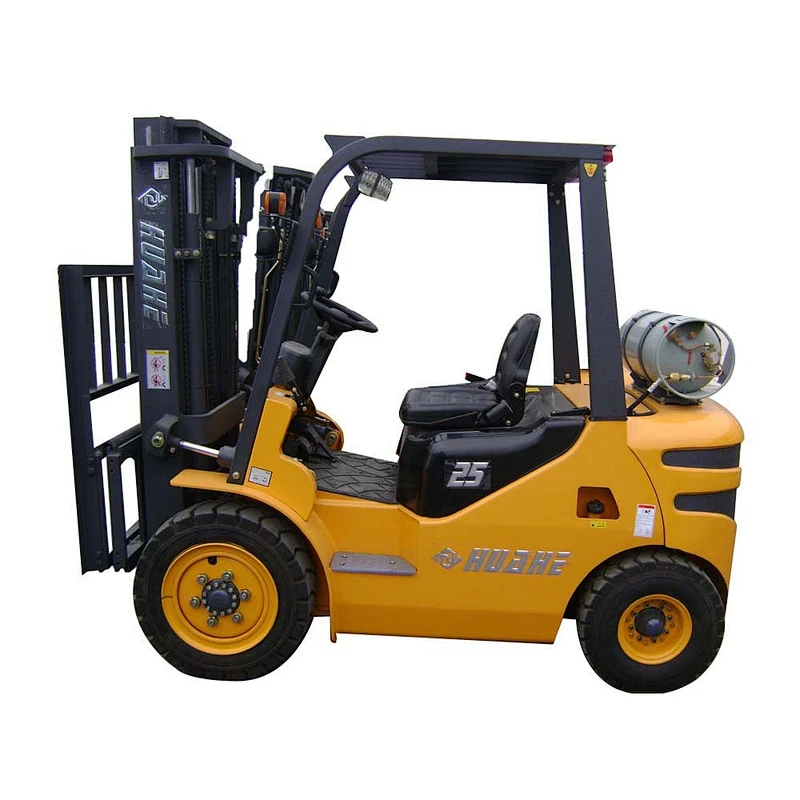

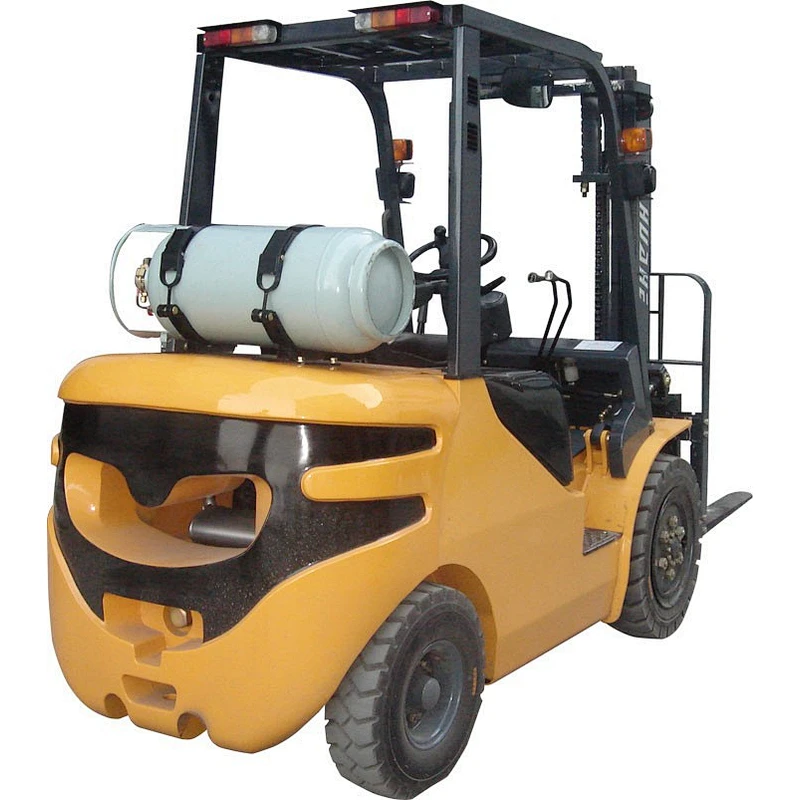

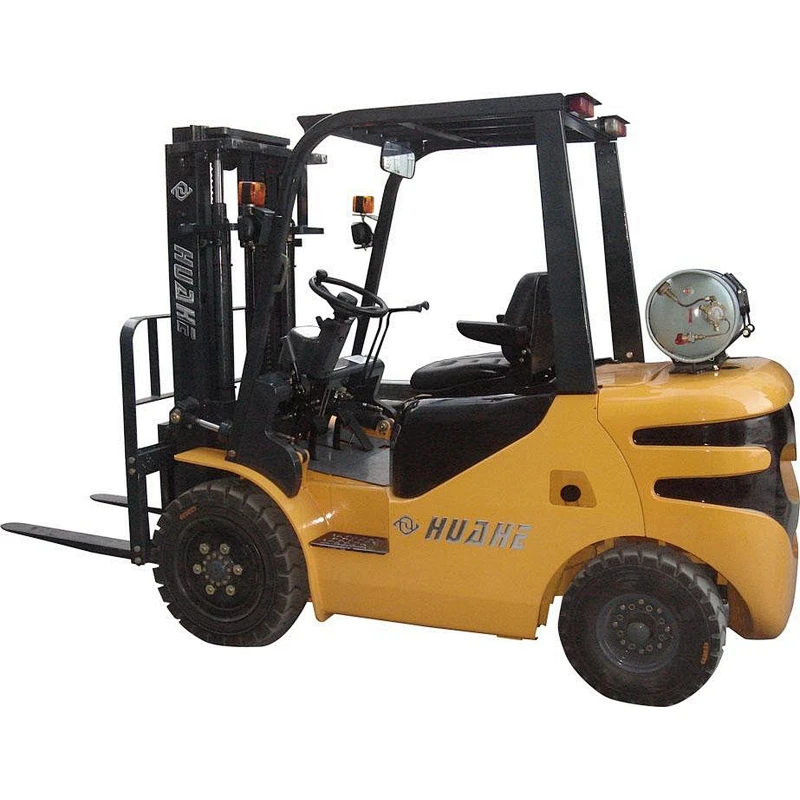

Multi-angle Pictures Of The product
Detail view
The Option Part
Loading Detail
Hot sales
Succesive Exhibition
Our Team
Assmble Line
Certificate
HUAHE, is trustworthy!
- We inspect every machine before packing.
- All orders are shipped directly from our warehouse.
- Feel free to contact us if you have any problem to use the machine when you received it.
