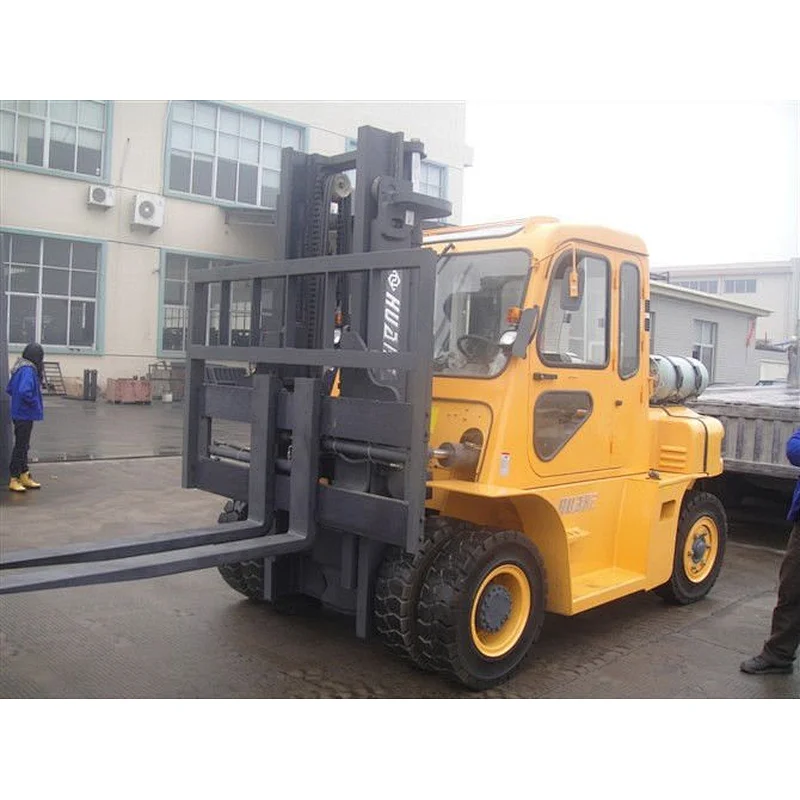

5T LPG Forklift With Cabin

5T LPG Forklift With Cabin

5T LPG Forklift With Cabin

Model NO.: HH50Z-W22-GL
Price:: USD 24000.00-30000.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 50 unit / Month
Country of Origin: Ningbo/Shanghai

Quantity:

Product Description

Place of Origin:CN;ZHE
Max. Lifting Height:6000mm
Brand Name:HUAHE
Condition:New
Overall Dimensions:3580x2010x2250mm
Fork Length:1220mm
Certification:CE
Power Souce:Diesel Engine
Min. Lifting Height:3000mm
Fork Width:150mm
Type:Powered Pallet Truck
Rated Loading Capacity:5000KG
Model Number:HH50Z-W22-GL
Colour:Yellow/Green
Weight:8550KGS

Generals	Model		Unit	HH50Z
	Power type			Diesel
	Rated capacity		Kg	5000
	Load center		mm	600
Dimensions	Lift height		mm	3000
	Free lift height		mm	150
	Fork size (L×W×T)		mm	1220×150×65
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	590
	Overall Dimensions	Length to face of fork	mm	2480
		Overall width	mm	2010
		Mast lowered height	mm	2625
		Overhead guard height	mm	2250
	Turning radius		mm	3370
	Min. right angle aisle width		mm	3755
Performance	Travel speed	Forward I	Km/h	13/12
		Forward II	Km/h	32/26
		Backward I	Km/h	13/12
	Lift speed		mm/s	600/400
	Max. grade ability		%	20
	Max. drawbar pull		Kn	40
	Self weight		Kg	8550
Wheels & Tires	Tires	Front		8.25-15-14PR
	Tires	Rear		8.25-15-14PR
	Tread	Front Q	mm	1470
	Tread	Rear S	mm	1700
	Wheelbase		mm	2250
	Min. ground clearance (unload/full load)	Mast	mm	175/145
	Min. ground clearance (unload/full load)	Frame	mm	190/180
Drive units & Control	Battery		V/Ah	2-12V/90AH
	Engine	Model
		Rated output	Kw/rpm
		Rated torque	N.m/rpm
		Displacement	cc
	Transmission	Type		Hydraulic
	Transmission	Shift Fwd/Rwd		2/2
	Operating pressure		Mpa	19

Quantity: 2pcs/40'HQ
