- Applicable Industries:Construction works
- Condition:New
- Place of Origin:CN;ZHE
- Power Souce:Gasoline Engine
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- Type:Other
- Brand Name:HUAHE
- Max. Lifting Height:4500mm
- Min. Lifting Height:3000mm
- Fork Length:1070-1800mm
- Fork Width:122mm
- Overall Dimensions:2480x1150x2120
- Certification:CE
- Colour:Yellow/Green/White
- Weight:3720KGS
- Mast:3meter duplex mast /4.5meter triplex mast

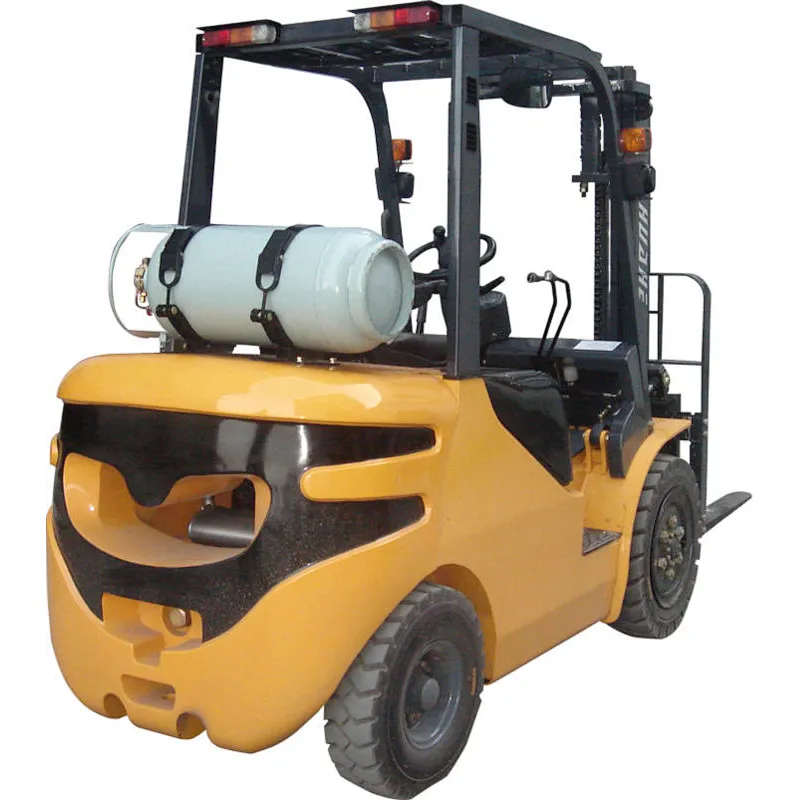

2Ton Truck With NISSAN ENGINE
Specification
origin | ZHEJIANG HuaHe forklift Company | |||||||||
Model |
| HH25Z | ||||||||
Power type |
| LPG | ||||||||
Rated capacity | kg | 2500 | ||||||||
Load center | mm | 500 | ||||||||
Dimension | Lift height | mm | 3000 | |||||||
Free lift height | mm | 130 | ||||||||
Fork size | N*U*L | mm | 1070*122*40 | |||||||
Mast inclination | Front/Back | deg | 6/12 | |||||||
Front o-verhang | mm | 482 | ||||||||
Overall dimensions | Length to face of fork | mm | 2480 | |||||||
Overall width | mm | 1150 | ||||||||
Mast lowered height | mm | 2095 | ||||||||
Overhead guard height | mm | 2120 | ||||||||
Turning radius | mm | 2320 | ||||||||
Min. right angle aisle width | mm | 1910 | ||||||||
Performance | Travel speed | No load | km/h | 9/20 | ||||||
Full load | mm/s | 8.8/18.5 | ||||||||
Lift speed | mm/s | 480 | ||||||||
Max. gradeability | % | 20 | ||||||||
Max. drawbar pull | Kn | 14 | ||||||||
self weight | kg | 3720 | ||||||||
Wheel&Tires | Tires | Front |
| 7.00-12-12PR | ||||||
Rear |
| 6.00-9-10PR | ||||||||
Tread | Front | mm | 970 | |||||||
Rear | mm | 970 | ||||||||
Wheelbase | mm | 1650 | ||||||||
Min. ground (no ldad/full load) | Mast | mm | 152/132 | |||||||
Frame | mm | 158/138 | ||||||||
Drive units | Battery | Voltage | V/Ah | 12/90 | ||||||
Engine | Model |
| 4TNE92 | |||||||
origin |
| Japan | ||||||||
Rated output/r.p.m | kw/r.p.m | 33/2450 | ||||||||
Rated torque | N.m/r.p.m | 150/1700 | ||||||||
No.Cylinder |
| 2659 | ||||||||
Displacement | cc | 4 | ||||||||
Type |
| Hydraulic | ||||||||
Shift | (Fwd/Rwd) |
| 1/1 | |||||||
Operating pressure | Mpa | 17.5 | ||||||||
OPTION:
Mast of different heights
Solid tyre/Double tyre
Side shifter
Fork extension
Pipe and valves
Fork positioner
Rotator
Paper roll clamp
Bale clamp
Selling Point
- Chinese Automatic Transmission With TCM Technology Improves Operator's Efficiency, Responding Rapidly And Smoothly.
- Intelligent Buffer Design Avoids Sharp Collision And Minimizes The Risk Of Damage During Lower Of Loads, Wide-view Mast Also Provides High-visibility To The Operator
- High-Capacity Aluminum Radiator Is Designed For Efficient Thermal Transfer Fin And Oil Cooler For The Transmission Torque Converter, Assists In Improving Iongevity Of Engines.
- Wide Range Of Diesel, Gasoline, And LPG Engine Options.
