- Type:Powered Pallet Truck
- Color:Yellow
- Tires:Pneumatic
- Engine:YANMAR 4TNE92
- Weight:Weight
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Algeria
- Showroom Location:Algeria
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 YEAR
- Core Components:Motor
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:HUAHE
- Min. Lifting Height:2120mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2680x1225x2120mm
- Certification:CE

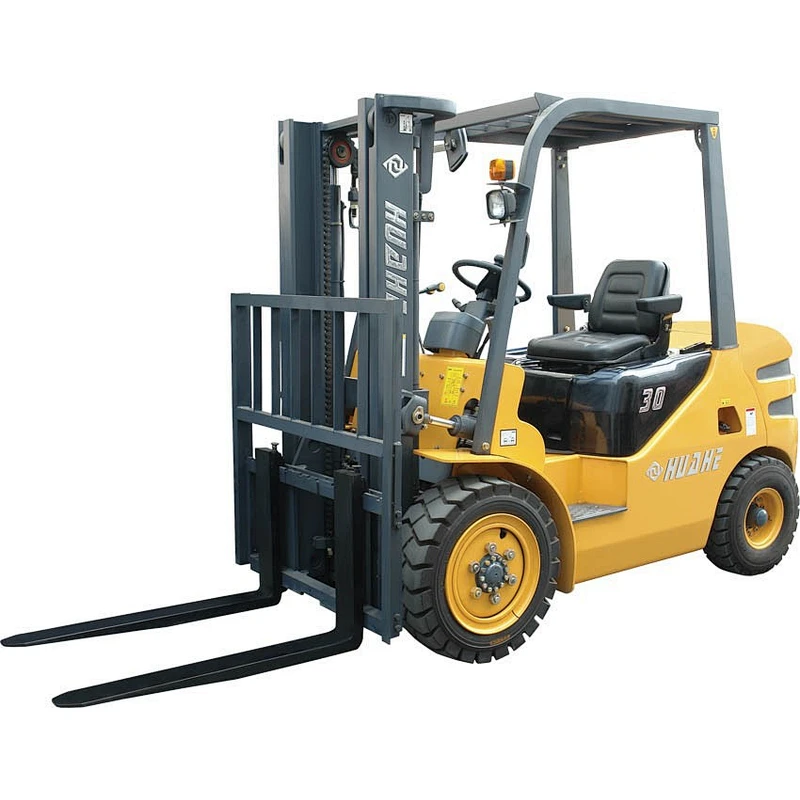

Structure Characteristics: Powerful, Economical and Comfortable
l Seat: Seat could be adjusted back and forth. The loading capacity of the seat can be automatically according to body weight, thereby to make operation comofortable. Safety belt is equipped to ensure driver’s safety.
l Fork buffer system: When the forks are landing to touch ground, it will speed down to reduce impact and noice.
Generals | Model | Unit | HH30 | HH30Z | |
Power type |
| Diesel | |||
Rated capacity | Kg | 3000 | |||
Load center | mm | 500 | |||
Dimensions | Lift height | mm | 3000 | ||
Free lift height | mm | 130 | |||
Fork size (L×W×T) | mm | 1070×125×45 | |||
Mast inclination F/R | Deg | 6°/12° | |||
Front overhang | mm | 490 | |||
Overall Dimensions | Length to face of fork | mm | 2680 | ||
Overall width | mm | 1225 | |||
Mast lowered height | mm | 2095 | |||
Overhead guard height | mm | 2120 | |||
Turning radius | mm | 2460 | |||
Min. right angle aisle width | mm | 2105 | |||
Performance | Travel speed | Unload I/II | Km/h | 9/20 | |
Full load I/II | Km/h | 8.8/18.5 | |||
Lift speed | mm/s | 480 | |||
Max. grade ability | % | 20 | |||
Max. drawbar pull | Kn | 13 | |||
Self weight | Kg | 4400 | |||
Wheels & Tires | Tires | Front |
| 28×9-15-12PR | |
Rear |
| 6.50-10-10PR | |||
Tread | Front Q | mm | 1000 | ||
Rear S | mm | 970 | |||
Wheelbase | mm | 1700 | |||
Min. ground clearance (unload/full load) | Mast | mm | 152/132 | ||
Frame | mm | 158/138 | |||
Drive units & Control | Battery | V/Ah | 12/90 | ||
Engine | Model |
| 4TNE92 490BPG | ||
Rated output | Kw/rpm | 33/2450 37/2650 | |||
Rated torque | N.m/rpm | 150/1700 145/1800 | |||
Displacement | cc | 2659 2400 | |||
Transmission | Type |
| Hydraulic | ||
Shift Fwd/Rwd |
| 1/1 Power shift | |||
Operating pressure | Mpa | 17.5 | |||
Total Dimension: 2680mm*1225mm*2120mm
Weight: 4400kgs
Quantity: 3pcs/20'GP 6pcs/40'HQ
