ZHEJIANG HUAHE FORKLIFT CO.,LTDAbout UsLibei Village, Jinqing Town, Luqiao District, Taizhou City, Zhejiang Province, ChinaThe Zhejiang Huahe Forklift is a recognized brand, which is expanding throughout the local and international market place. We are based in the city of Taizhou, the Industrial heart of Zhejiang Province. We specialize in providing quality forklifts at competitive prices. Our factory is over 40,000 square meters with an annual production capacity of 30,000 units. Strict compliance with ISO9001 and CE certification guarantees the quality and reliability of all Huahe products. Suspension vehicle body, ergonomic operation, cutting edge design are integrated together to improve efficiency. We guarantee lower prices with exce

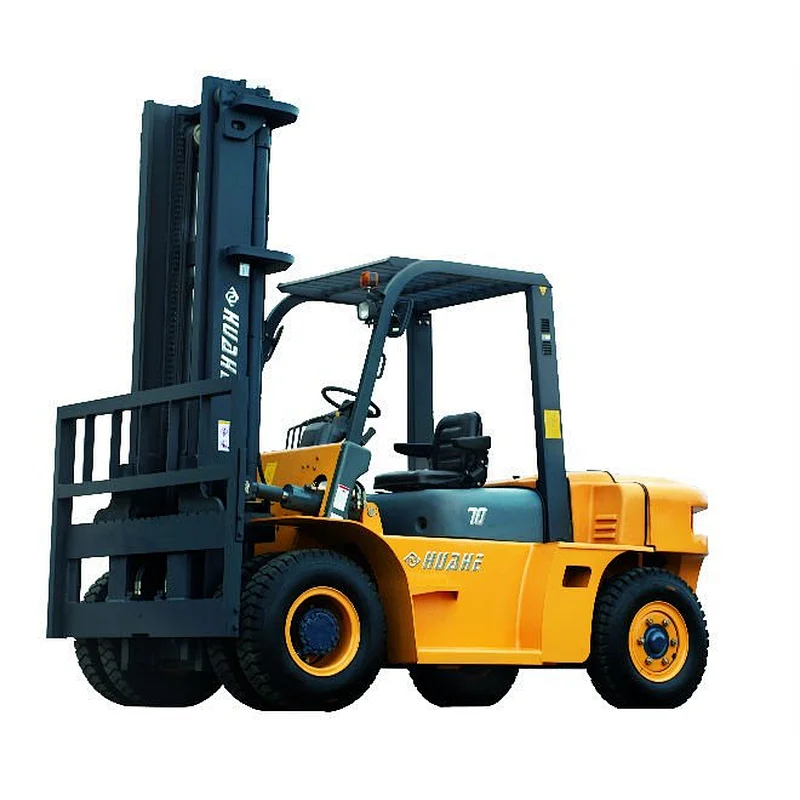

7t forklift truck,chinese huahe diesel forklift truck sale

7t forklift truck,chinese huahe diesel forklift truck sale

7t forklift truck,chinese huahe diesel forklift truck sale

Price:: USD 19500.00-19500.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 50.0 unit / Month
Country of Origin: Ningbo/Shanghai

Quantity:

Product Description

Type:Powered Pallet Truck
Color:Yellow/Orange
Weight:9350KGS
Applicable Industries:Construction works
After Warranty Service:Online support
Local Service Location:Algeria
Showroom Location:Algeria
Condition:New
Power Souce:Diesel Engine
Warranty:1 YEAR
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 YEAR
Core Components:Motor
Core Components:Engine
Place of Origin:CN;ZHE
Brand Name:HUAHE
Min. Lifting Height:3000mm
Fork Length:1220mm
Fork Width:150mm
Overall Dimensions:3580x2010x2250mm
Certification:CE/ISO9001

Generals	Model		Unit	HH70Z
	Power type			Diesel
	Rated capacity		Kg	7000
	Load center		mm	600
Dimensions	Lift height		mm	3000
	Free lift height		mm	150
	Fork size (L×W×T)		mm	1220×150×65
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	590
	Overall Dimensions	Length to face of fork	mm	3580
		Overall width	mm	2010
		Mast lowered height	mm	2625
		Overhead guard height	mm	2250
	Turning radius		mm	3370
	Min. right angle aisle width		mm	3755
Performance	Travel speed	Unload I/II	Km/h	13/12
	Travel speed	Full load I/II	Km/h	32/26
	Lift speed		mm/s	460
	Max. grade ability		%	20
	Max. drawbar pull		Kn	40
	Self weight		Kg	9350
Wheels & Tires	Tires	Front		8.25-15-14PR
	Tires	Rear		8.25-15-14PR
	Tread	Front Q	mm	1470
	Tread	Rear S	mm	1700
	Wheelbase		mm	2250
	Min. ground clearance (unload/full load)	Mast	mm	175/145
	Min. ground clearance (unload/full load)	Frame	mm	190/180
Drive units & Control	Battery		V/Ah	(12V/80Ah)x2
	Engine	Model		CY6102BG
		Rated output	Kw/rpm	809./2500
		Rated torque	N.m/rpm	353/1650
		Displacement	cc	5785
	Transmission	Type		Hydraulic
	Transmission	Shift Fwd/Rwd		2/1
	Operating pressure		Mpa	18
