- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Algeria
- Showroom Location:Algeria
- Condition:New
- Place of Origin:CN;ZHE
- Power Souce:Diesel Engine
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts

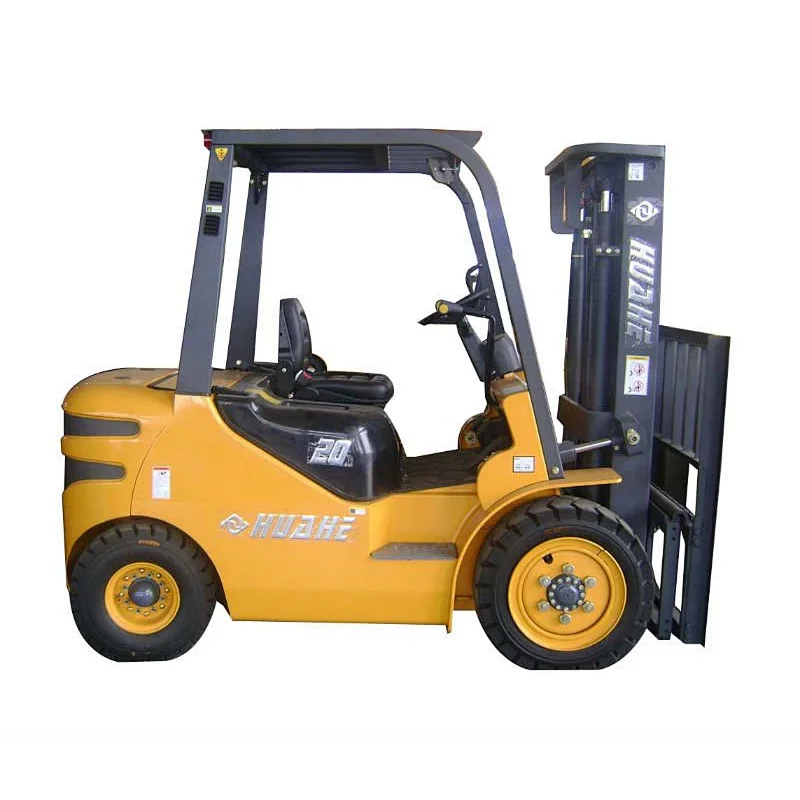

- Brand Name:HUAHE
- Max. Lifting Height:4000mm
- Min. Lifting Height:3000mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2630x1150x2120mm
- Certification:CE/ISO9001
- Type:Powered Pallet Truck
- Color:White
- Weight:4020KGS
Generals | Model | Unit | HH20 | HH20Z | |
Power type |
| Diesel | |||
Rated capacity | Kg | 2000 | |||
Load center | mm | 500 | |||
Dimensions | Lift height | mm | 3000 | ||
Free lift height | mm | 130 | |||
Fork size (L×W×T) | mm | 1070×122×40 | |||
Mast inclination F/R | Deg | 6°/12° | |||
Front overhang | mm | 482 | |||
Overall Dimensions | Length to face of fork | mm | 2480 | ||
Overall width | mm | 1150 | |||
Mast lowered height | mm | 2095 | |||
Overhead guard height | mm | 2120 | |||
Turning radius | mm | 2320 | |||
Min. right angle aisle width | mm | 1910 | |||
Performance | Travel speed | Unload I/II | Km/h | 9/20 | |
Full load I/II | Km/h | 8.8/18.5 | |||
Lift speed | mm/s | 480 | |||
Max. grade ability | % | 20 | |||
Max. drawbar pull | Kn | 14 | |||
Self weight | Kg | 3720 | |||
Wheels & Tires | Tires | Front |
| 7.00-12-12PR | |
Rear |
| 6.00-9-10PR | |||
Tread | Front Q | mm | 970 | ||
Rear S | mm | 970 | |||
Wheelbase | mm | 1650 | |||
Min. ground clearance (unload/full load) | Mast | mm | 152/132 | ||
Frame | mm | 158/138 | |||
Drive units & Control | Battery | V/Ah | 12/90 | ||
Engine | Model |
| C240 490BPG | ||
Rated output | Kw/rpm | 34.5/2500 37/2650 | |||
Rated torque | N.m/rpm | 139/1800 148/1800 | |||
Displacement | cc | 3059 2650 | |||
Transmission | Type |
| Hrdraulic | ||
Shift Fwd/Rwd |
| 1/1 Power shift | |||
Operating pressure | Mpa | 17.5 | |||
