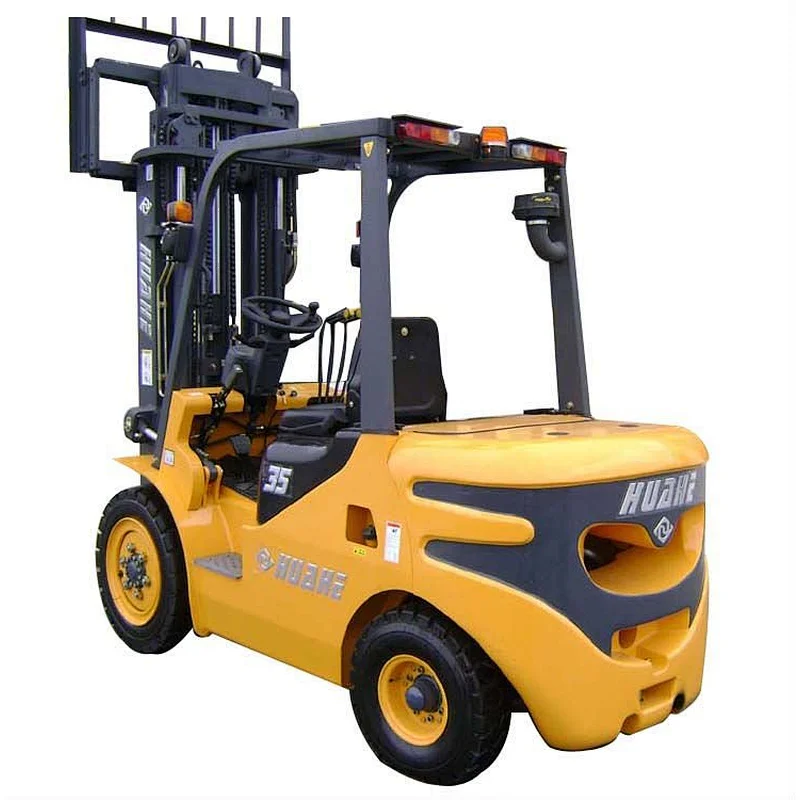

Forklift With A495 Engines

Forklift With A495 Engines

Forklift With A495 Engines

Price:: USD 12600.00-12600.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 100.0 unit / Month
Country of Origin: Ningbo/Shanghai

Quantity:

Product Description

Type:Powered Pallet Truck
Color:Yellow/Blue
Weight:4700KGS
Applicable Industries:Construction works
After Warranty Service:Online support
Local Service Location:Algeria
Showroom Location:Algeria
Condition:New
Power Souce:Diesel Engine
Warranty:1 YEAR
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 YEAR
Core Components:Motor
Core Components:Engine
Place of Origin:CN;ZHE
Brand Name:HUAHE
Min. Lifting Height:3000mm
Fork Length:1070mm
Fork Width:125mm
Overall Dimensions:2730x1225x2120
Certification:CE

Generals	Model		Unit	HH35	HH35Z
	Power type			Diesel
	Rated capacity		Kg	3500
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L×W×T)		mm	1070×125×50
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	490
	Overall Dimensions	Length to face of fork	mm	2730
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2510
	Min. right angle aisle width		mm	2200
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13
	Self weight		Kg	4700
Wheels & Tires	Tires	Front		28×9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1000
	Min. ground clearance (unload/full load)	Mast	mm	168/1800
		Frame	mm	158/138
Drive units & Control	Battery		V/Ah	12/90
	Engine	Model		A495BPG
		Rated output	Kw/rpm	39/2650
		Rated torque	N.m/rpm	168/1800
		Displacement	cc	2980
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5
