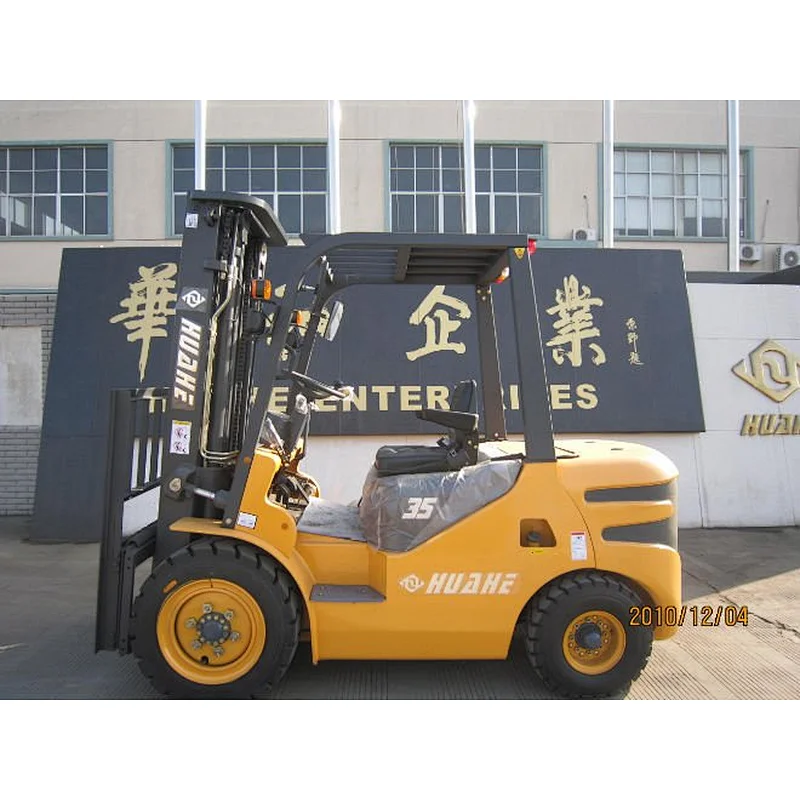

3.5T Gasoline Forklift With Nissan Engine

3.5T Gasoline Forklift With Nissan Engine

3.5T Gasoline Forklift With Nissan Engine

Model NO.: HH35Z-W21-G
Price:: USD 11500.00-13000.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 100 unit / Month
Country of Origin: Ningbo/Shanghai

Quantity:

Product Description

Place of Origin:CN;ZHE
Max. Lifting Height:6000mm
Brand Name:HUAHE
Condition:New
Overall Dimensions:2730x1225x2120mm
Fork Length:1070mm
Certification:CE
Power Souce:Gasoline Engine
Min. Lifting Height:3000mm
Fork Width:125mm
Type:Powered Pallet Truck
Rated Loading Capacity:3500KG
Model Number:HH35Z-W21-G
Color:Yellow
Weight:4700

Generals	Model		Unit	HH35	HH35Z
	Power type			Diesel
	Rated capacity		Kg	3500
	Load center		mm	500
Dimensions	Lift height		mm	3000
	Free lift height		mm	130
	Fork size (L×W×T)		mm	1070×125×50
	Mast inclination F/R		Deg	6°/12°
	Front overhang		mm	490
	Overall Dimensions	Length to face of fork	mm	2730
		Overall width	mm	1225
		Mast lowered height	mm	2095
		Overhead guard height	mm	2120
	Turning radius		mm	2510
	Min. right angle aisle width		mm	2200
Performance	Travel speed	Unload I/II	Km/h	9/20
		Full load I/II	Km/h	8.8/18.5
	Lift speed		mm/s	480
	Max. grade ability		%	20
	Max. drawbar pull		Kn	13
	Self weight		Kg	4700
Wheels & Tires	Tires	Front		28×9-15-12PR
		Rear		6.50-10-10PR
	Tread	Front Q	mm	1000
		Rear S	mm	970
	Wheelbase		mm	1700
	Min. ground clearance (unload/full load)	Mast	mm	152/132
		Frame	mm	158/138
Drive units & Control	Battery		V/Ah	12/90
	Engine	Model		Nissan K25
		Rated output	Kw/rpm	37.4/2300
		Rated torque	N.m/rpm	176.5/1600
		Displacement	cc	2488
	Transmission	Type		Hydraulic
		Shift Fwd/Rwd		1/1 Power shift
	Operating pressure		Mpa	17.5

Send Message

Related Products

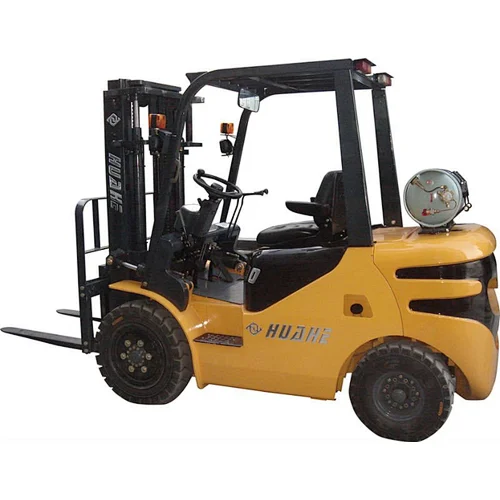

2ton Gasoline LPG Forklift with Chinese Engine For Sale

2ton Gasoline LPG Forklift with Chinese Engine For Sale

Model NO. HH20Z-W19-GL

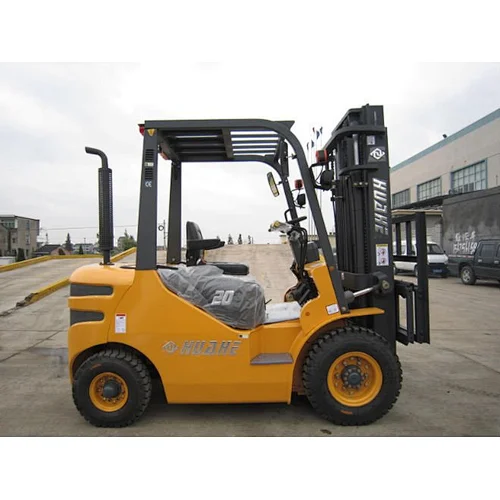

2.0T 4.5M Capacity Gasoline Forklift With Nissan Engine

2.0T 4.5M Capacity Gasoline Forklift With Nissan Engine

Model NO. HH20Z-W20-G

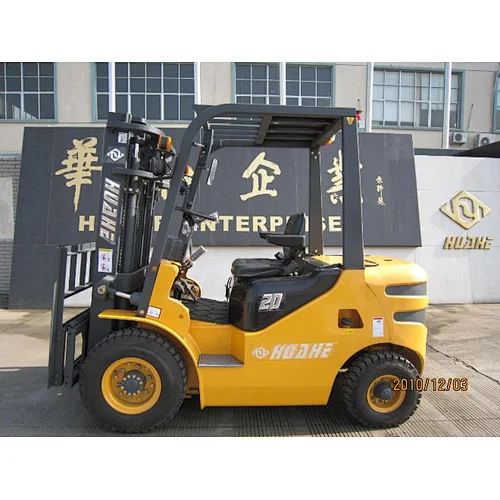

2ton Gasoline LPG Double Use Forklift with Japanese Nissan k21 Engine

2ton Gasoline LPG Double Use Forklift with Japanese Nissan k21 Engine

Model NO. HH20Z-W20-GL

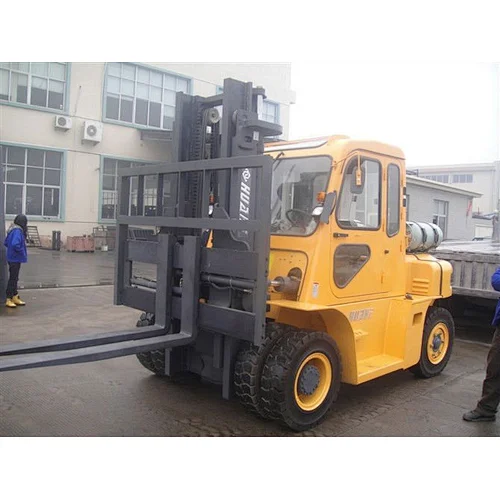

5T LPG Forklift With Cabin

5T LPG Forklift With Cabin

Model NO. HH50Z-W22-GL

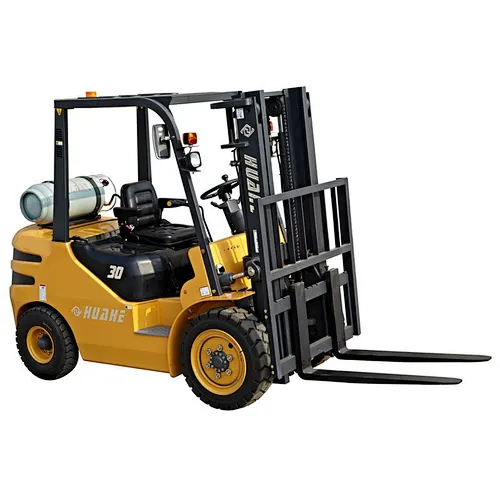

Forklift Truck Lpg With Chinese Gasoline Engines With Forklift Push/ pull

Forklift Truck Lpg With Chinese Gasoline Engines With Forklift Push/ pull

Model NO. HH30Z-W21-GL

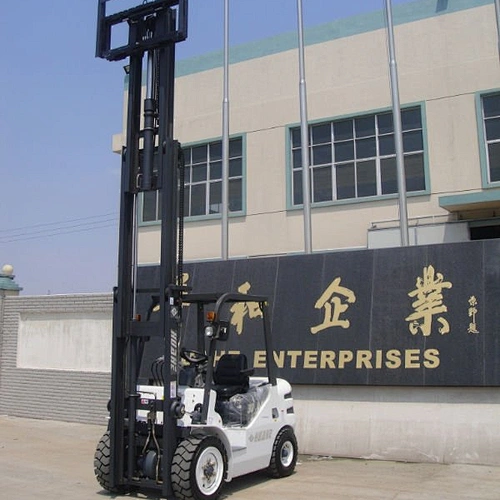

Gasoline Forklift With 4.5M 3 Stage Mast

Gasoline Forklift With 4.5M 3 Stage Mast

Model NO.

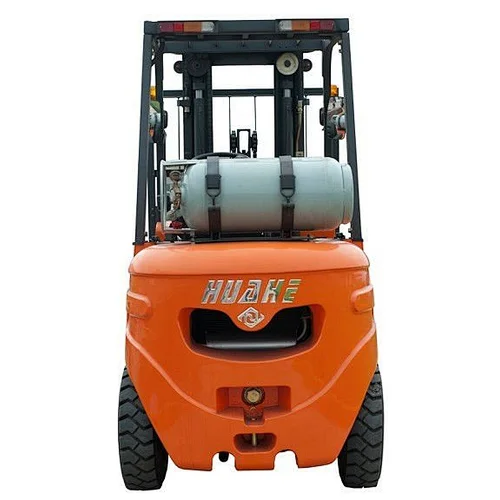

3.5 ton Capacity Forklift withEngine Nissan truck duplex 3.7meter

3.5 ton Capacity Forklift withEngine Nissan truck duplex 3.7meter

Model NO. HH35Z-W21-GL

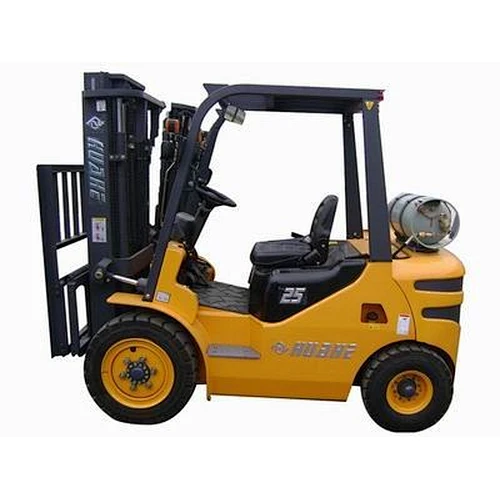

new LPG nissan forklift filter with brake wheel cylinder
