- Place of Origin:CN;ZHE
- Max. Lifting Height:3000MM
- Brand Name:HUAHE
- Condition:New
- Overall Dimensions:1920*740*2100mm
- Fork Length:1920mm
- Certification:CE/ISO9001
- Power Souce:AC Motor
- Min. Lifting Height:85MM
- Fork Width:870mm
- Rated Loading Capacity:1600KG
- Model Number:New Arrival HEPS-14/16
- Type:Electric Pallet Stacker
- Color:Yellow/Blue/Orange/White

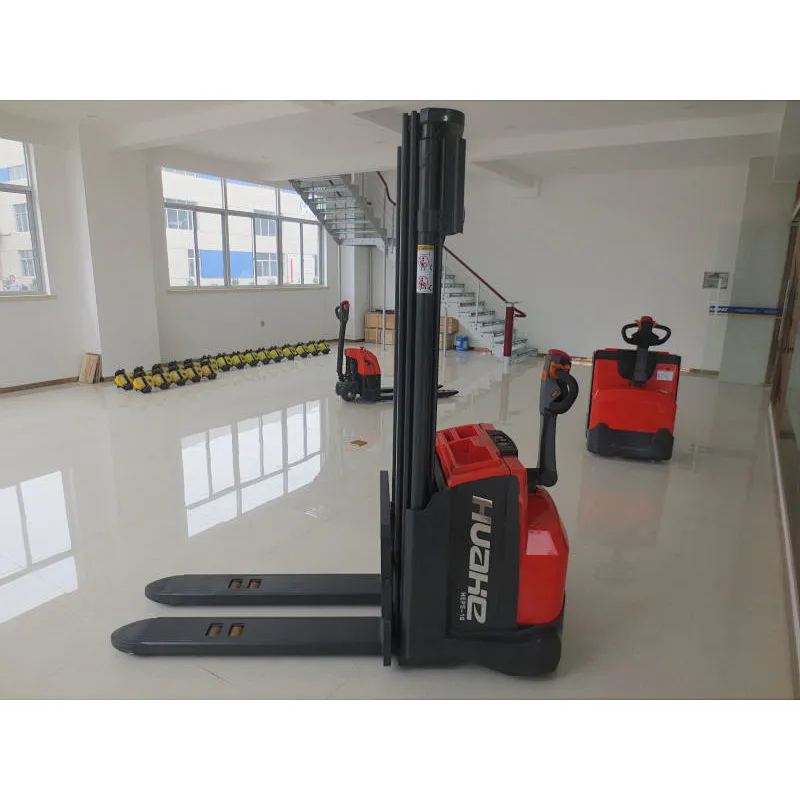

1.4-1.6T 6m Electric Pallet Stacker For Warehouse and Plants
Safe/Comfortable/Powerful/Durable
New Arrival HEPS-14/16
1.Curtis AC Control System
2.Walkie Standard,Rider option
3.Electromagnetic Brake
4.Easier operations through handle
5.Electric Power Steering systems
6.Suitable for storage situations
7.used for lifting and stacking of pallets in warehouses and plants
| 1 | Model | HEPS-14 | HEPS-16 | ||
| Characteristics | 2 | Operation type | Rider type/Walkie type | Rider type/Walkie type | |
| 3 | Load capacity | Q(kg) | 1400 | 1600 | |
| 4 | Load center | c(mm) | 600 | 600 | |
| Weight | 5 | Self weight | kg | 1080 | 1130 |
| Tires and wheel | 6 | Tires model:steering tires/Bearing tires | PU/PU | PU/PU | |
| Dimensions | 7 | Mast lowered height | h1(mm) | 2019 | 2019 |
| 8 | Free lift height | h2(mm) | 100 | 100 | |
| 9 | Lift height | h3(mm) | 3000/3300/3600 | 3000/3300/3600 | |
| 10 | Fork abover ground height | h13(mm) | 85 | 85 | |
| 11 | Over lenght | l1(mm) | 1920 | 1920 | |
| 12 | Over width | b1/b2(mm) | 870 | 870 | |
| 13 | Fork size | s/e/l(mm) | 55/185/1150 | 55/185/1150 | |
| 14 | Fork outside width | b5(mm) | 560 | 560 | |
| 15 | Turning radius | Wa(mm) | 1600 | 1600 | |
| Performance | 16 | Travel speed Laden/unladen | km/h | 5/5 | 5/5 |
| 17 | Gradeability Laden/unladen | . | 5/8 | 5/8 | |
| Driving system | 18 | Drive motor output | kW | 1.5 | 1.5 |
| 19 | Lifting motor output | kW | 3 | 3 | |
| 20 | Battery voltage/capacity | V/Ah | 24/210 | 24/210 | |
| 21 | Control system | AC | AC | ||
| 22 | Manufacturer | CURTIS | CURTIS |
