- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Algeria
- Showroom Location:Algeria
- Condition:New
- Place of Origin:CN;ZHE
- Power Souce:AC Motor
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- Brand Name:HUAHE
- Max. Lifting Height:110MM
- Min. Lifting Height:85MM
- Fork Length:1150mm
- Fork Width:185mm
- Overall Dimensions:1830x720x1100mm
- Certification:CE/ISO9001
- Type:Electric Pallet Truck
- Color:Yellow/Blue/Orange/White
- Operator Type:Walkie/Rider
- Weight:750KGS

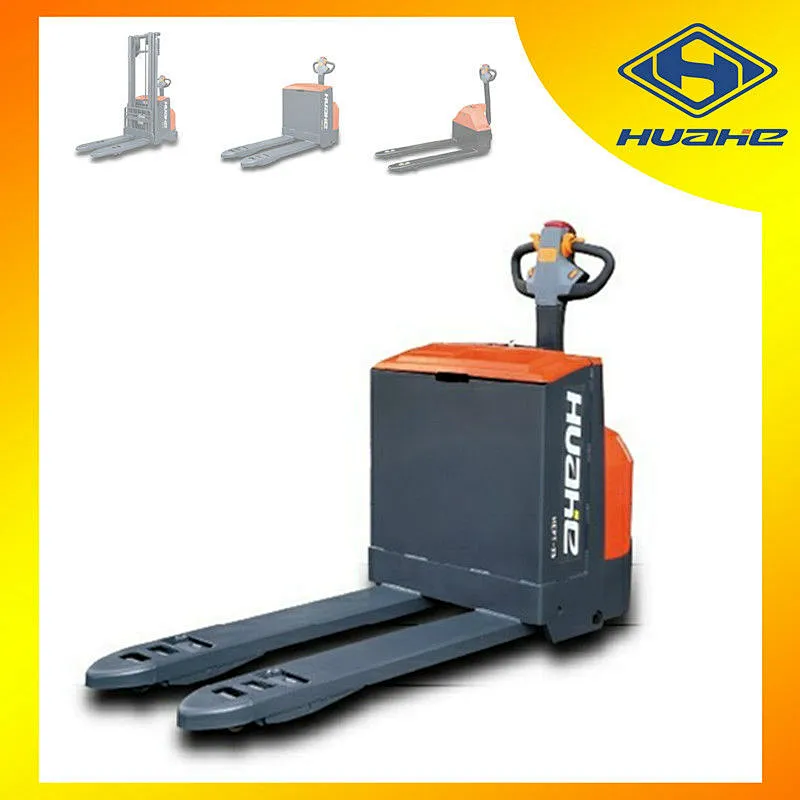

Electric Pallet Turck, Small Electric Forklift Movement Fork Goods
Specification
| Model | HEPT-20 | HEPT-25 |
| Capacity(kg) | 2000 | 2500 |
| Travelling motor | 1.5KW AC | 1.5KW AC |
| Lifting motor | 2.0KW DC | 2.0KW DC |
| Battery voltage/capacity | 24V / 210Ah | 24V / 280Ah |
| Brake type | Electromagnetic | Electromagnetic |
| Control system | Curtis-1230-2402 | Curtis-1230-2402 |
| EPS (electric power steering) | Standard equipment | Standard equipment |
| load centre-mm | 600 | 600 |
| Operator type | walkie-standard | walkie-standard |
| Rider-option | added USD | Rider-option |
| Lifting geight-mm | 110 | 125 |
| Gound clearance-mm | 85 | 85 |
| Standard fork width-mm | 540 / 685 | 540 / 685 |
| Fork length-mm | 1150 / 1200 | 1150 / 1200 |
| Fork thickness-mm | 55 | 55 |
| Fork width-mm | 185 | 185 |
| Overall length-mm | 1830 | 1910 |
| Overall width-mm | 720 | 760 |
| Min.turning radius-mm | 1655 / 1705 | 1725/2130 |
| Max.travelling speed laden-km/h | 4.5 | 7 |
| Max.travelling speed unladen-km/h | 4.5 | 7 |
| Max.lifting speed laden-m/s | 0.056 | 0.056 |
| Max.lifting speed unladen-m/s | 0.06 | 0.06 |
| Max.lowering speed laden-m/s | 0.057 | 0.057 |
| Max.lowering speed unladen-m/s | 0.059 | 0.059 |
| Gradeability laden-% | 5 | 5 |
| Gradeability unladen-% | 7 | 7 |
| Service weight with battery-kg | 600 | 753 |
| wheel(drive/load) | PU | PU |
| Wheel quantity(drive/load) | 1D+4L/1D+2L | 1D+4L/1D+2L |
| Size of steering wheel-mm | 248*75 | 248*75 |
| Size of loading wheel-mm | 84*58 | 80*120 |
| Size of balance wheel-mm | 115*55 | 115*55 |
| Wheel base-mm | 1250 / 1300 | 1470 / 1520 |
Selling Point
- Curtis AC Control System
- Walkie Standard, Rider Option
- Electromagnetic Brake
- Easier Operations Through Handle
- Electric Power Steering Systems
- Suitable For Storage Situations
- Used For Transport And Stacking Of Pallets In warehouses And Plants

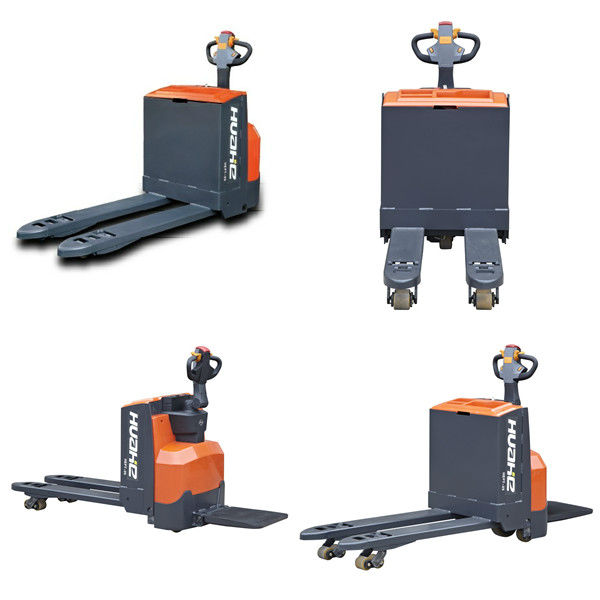

Multi-angle Pictures Of The product
