- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Algeria
- Showroom Location:Algeria
- Condition:New
- Power Souce:DC Motor
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- Place of Origin:CN;ZHE
- Brand Name:HUAHE
- Max. Lifting Height:6M
- Min. Lifting Height:3M
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2310x1150x2130mm
- Certification:CE/ISO9001
- Type:Forklift
- Tires:Pneumatic standard/Solid
- Weight:4100KGS
- Color:Yellow/Blue/Orange/White
- Mast:2 stage/2 stage full free/3 stage full free
- Exhaust:Standard/Upper-positioner
- Front tyres:Single/Double
- Lift height:3-6M
Electric Forklift Truck With Maintenance-free Forklift Battery
Specification
Model | HH30-C1 | |||
Rated Capacity | kg | 3000 | ||
Load Centre | mm | 500 | ||
Lifting Height | mm | 3000 | ||
Fork Size | L×W×T | mm | 1070×122×40 | |
Tilting Angle | F/R(α°/β°) | Deg | 6/12 | |
Overall Dimension | Length (to fork face) | mm | 2310 | |
Overall Width | mm | 1150 | ||
Height When Mast Lowered | mm | 1985 | ||
Height When Mast Lifting | mm | 4030 | ||
Safeguard Height | mm | 2130 | ||
Turning Radius | Min. | mm | 2120 | |
Front Overhang | mm | 470 | ||
Tread | (Front/Rear) | mm | 960/950 | |
|
|
|
| |
Ground Clearance | Min. | mm | 110 | |
Wheelbase | mm | 1450 | ||
Fork Spread | Min./Max. | mm | 245/1020 | |
Speed | Travel (Laden) | km/h | 11.5 | |
Lifting (Laden) | mm/s | 260 | ||
Gradeability | Laden | % | 15 | |
Service Weight(include battery ) | kg | 4100 | ||
Tire | Front×2 |
| 7.00-12-12PR | |
Rear×2 |
| 18×7-8-14PR | ||
Motor | Driven Motor | kw | 6.5 | |
Lift Motor | kw | 8.6 | ||
Battery | Standard | V/Ah | 48/620 | |
Controller | Manufacturer |
| CURTIS DC | |
Operating Pressure for Attachment |
| Mpa | 17.5 | |

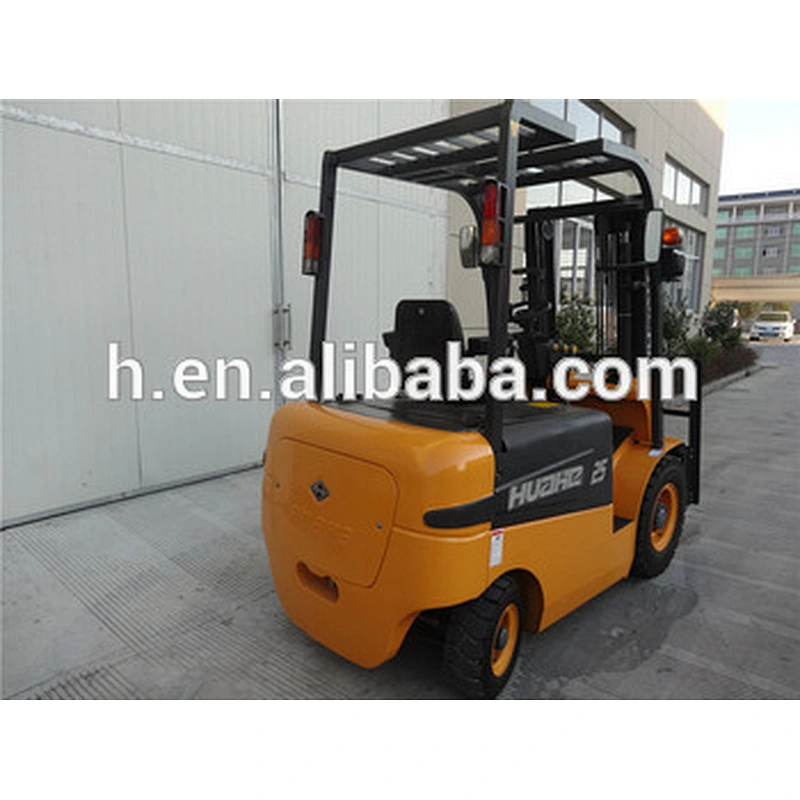

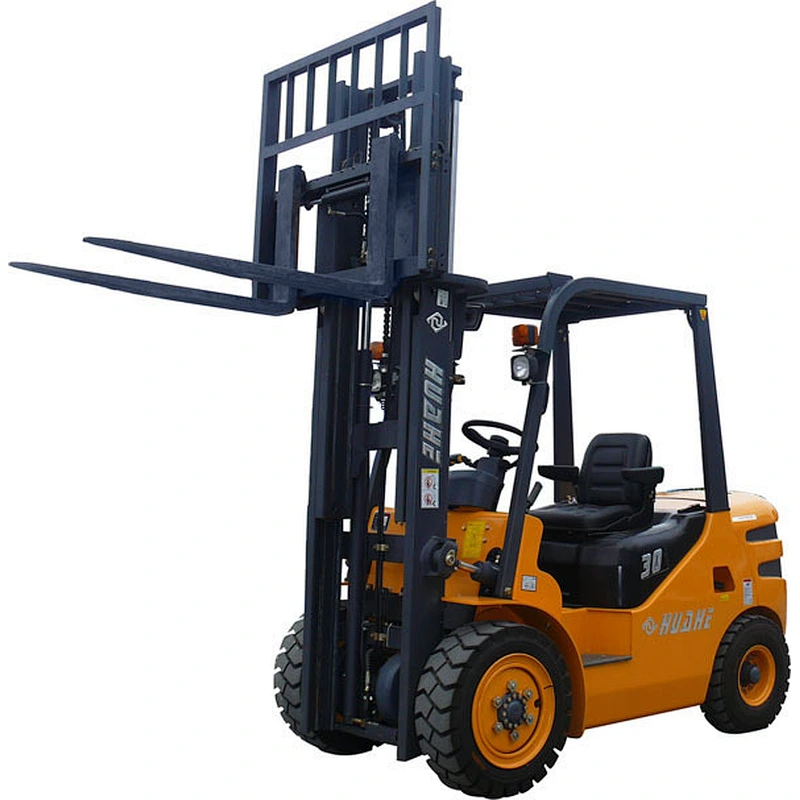

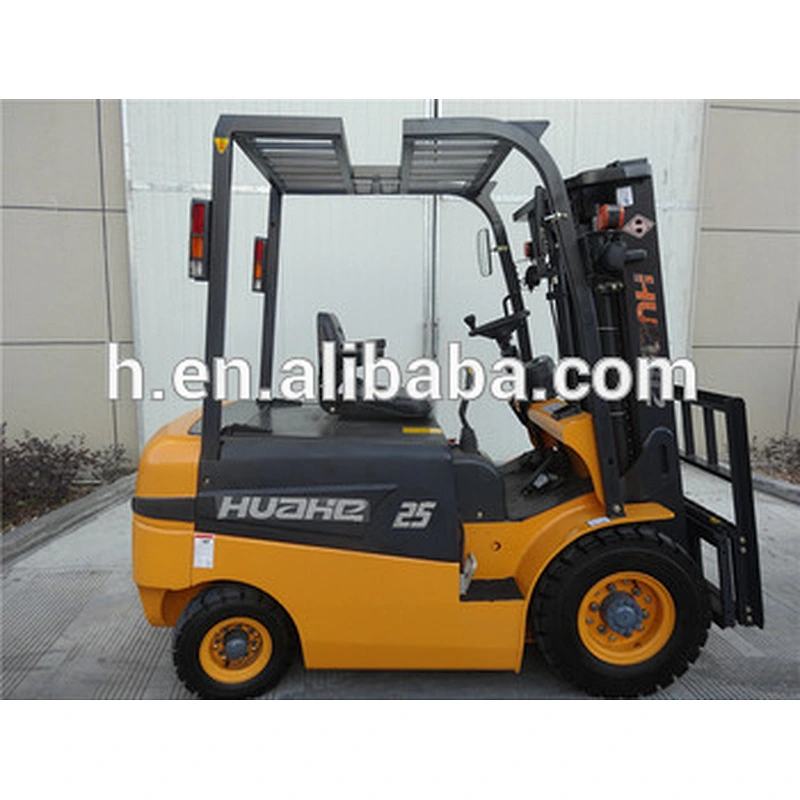

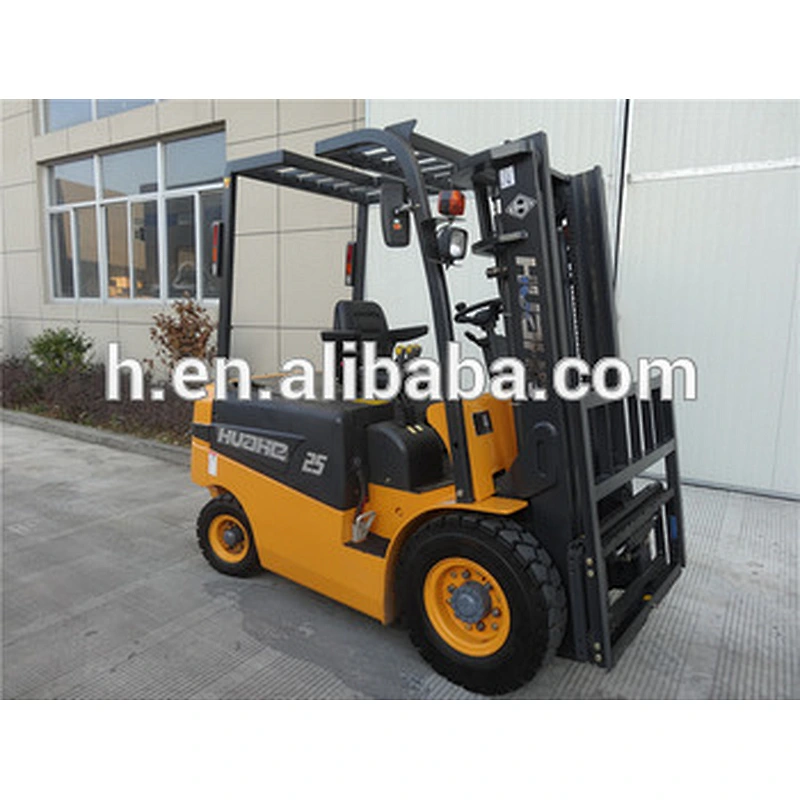

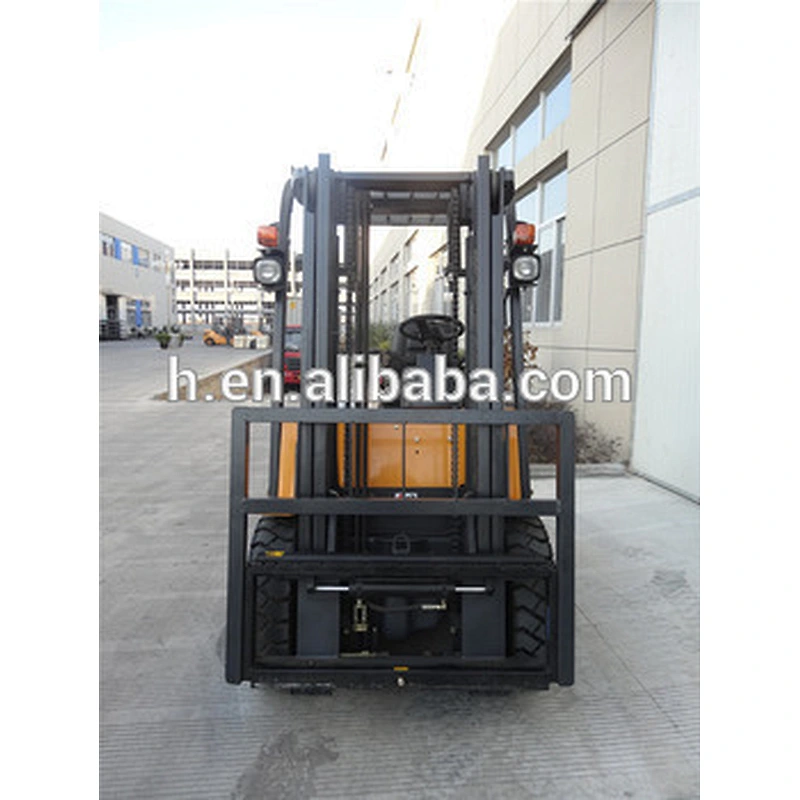

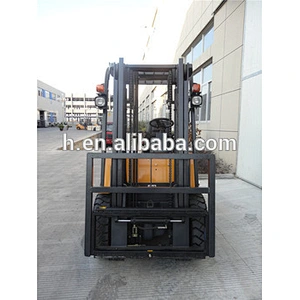

Multi-angle Pictures Of The product
Loading Detail
Hot sales
Succesive Exhibition
Our Team
Production Equipment
Assmble Line
Certificate
HUAHE, is trustworthy!
- We inspect every machine before packing.
- All orders are shipped directly from our warehouse.
- Feel free to contact us if you have any problem to use the machine when you received it.
