- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Algeria
- Showroom Location:Algeria
- Condition:New
- Place of Origin:CN;ZHE
- Power Souce:AC Motor
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- Brand Name:HUAHE
- Max. Lifting Height:205MM
- Min. Lifting Height:85MM
- Fork Length:1710mm
- Fork Width:740mm
- Overall Dimensions:1150*185*55mm
- Certification:CE
- Type:Electric Pallet Stacker
- Color:Orange/Yellow/Blue/White

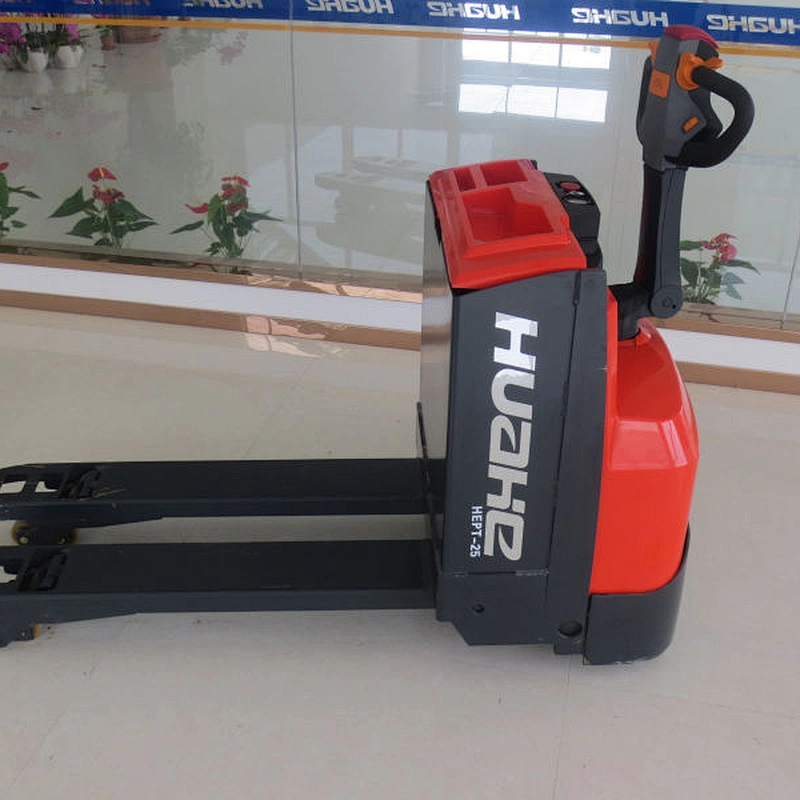

2.0-2.5T Electric Pallet Truck For Warehouse and Plants
Safe/Comfortable/Powerful/Durable
New Arrival HEPT-20/25
1.Curtis AC Control System
2.Walkie Standard,Rider option
3.Electromagnetic Brake
4.Easier operations through handle
5.Electric Power Steering systems
6.Suitable for storage situations
7.used for lifting and stacking of pallets in warehouses and plants
| 1 | Model | HEPT25 | |
| 2 | Load capacity | kg | 2500 |
| 3 | Service weight(with battery) | kg | 640 |
| 4 | Lowered fork height | mm | 85 |
| 5 | Overall width of forks | mm | 1710 |
| 6 | Fork width | mm | 740 |
| 7 | Fork length/width/height | mm | 1150/185/55 |
| 8 | Overall length | mm | 540/600/685 |
| 9 | Max.ground clearance | mm | 205 |
| 10 | Aisle width for pallet 1000*1200 crossways | mm | 1900 |
| 11 | Aisle width for pallet 800*1220 lengthways | mm | 2100 |
| 12 | Turning radius | mm | 1700 |
| 13 | Travel speed, Laden/unladen | km/h | 6/6 |
| 14 | Maximum gradeability, Laden/unladen | % | 5/7 |
| 15 | Battery voltage/rated capacity | v/AH | 24/210 |
